产品中心
滚针和销轴
滚针和销轴目录Needle Rollers And Pins滚针代号Needle roller Designation外形尺寸Boundary Dimension(mm)DwLw1.5X5.81.55.81.5X6.81.56.81.5X7.81.57.81.5X9.81.59.81.5X11.81.511.81.5X12.81.512.81.5X13.81.513.82X6.826.82X7.8
所属分类：
滚针和销轴
产品描述
|
滚针和销轴目录 Needle Rollers And Pins |
||
|
滚针代号 Needle roller Designation |

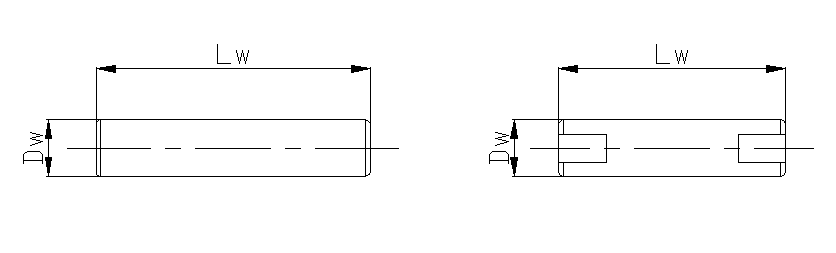

外形尺寸 Boundary Dimension (mm) |
|
| Dw | Lw | |
| 1.5X5.8 | 1.5 | 5.8 |
| 1.5X6.8 | 1.5 | 6.8 |
| 1.5X7.8 | 1.5 | 7.8 |
| 1.5X9.8 | 1.5 | 9.8 |
| 1.5X11.8 | 1.5 | 11.8 |
| 1.5X12.8 | 1.5 | 12.8 |
| 1.5X13.8 | 1.5 | 13.8 |
| 2X6.8 | 2 | 6.8 |
| 2X7.8 | 2 | 7.8 |
| 2X8.8 | 2 | 8.8 |
| 2X9.8 | 2 | 9.8 |
| 2X11.8 | 2 | 11.8 |
| 2X13.8 | 2 | 13.8 |
| 2X15.8 | 2 | 15.8 |
| 2X17.8 | 2 | 17.8 |
| 2X19.8 | 2 | 19.8 |
| 2X21.8 | 2 | 21.8 |
| 2.5X7.8 | 2.5 | 7.8 |
| 2.5X9.8 | 2.5 | 9.8 |
| 2.5X11.8 | 2.5 | 11.8 |
| 2.5X13.8 | 2.5 | 13.8 |
| 2.5X15.8 | 2.5 | 15.8 |
| 2.5X17.8 | 2.5 | 17.8 |
| 2.5X19.8 | 2.5 | 19.8 |
| 2.5X21.8 | 2.5 | 21.8 |
| 2.5X23.8 | 2.5 | 23.8 |
| 3X9.8 | 3 | 9.8 |
| 3X11.6 | 3 | 11.6 |
| 3X11.8 | 3 | 11.8 |
| 3X13.8 | 3 | 13.8 |
| 3X15.8 | 3 | 15.8 |
| 3X17.8 | 3 | 17.8 |
| 3X19.8 | 3 | 19.8 |
| 3X21.8 | 3 | 21.8 |
| 3X23.8 | 3 | 23.8 |
| 3X25.8 | 3 | 25.8 |
| 3X27.8 | 3 | 27.8 |
| 3X29.8 | 3 | 29.8 |
| 3.5X11.8 | 3.5 | 11.8 |
| 3.5X13.8 | 3.5 | 13.8 |
| 3.5X15.8 | 3.5 | 15.8 |
| 3.5X17.8 | 3.5 | 17.8 |
| 3.5X19.8 | 3.5 | 19.8 |
| 3.5X21.8 | 3.5 | 21.8 |
| 3.5X23.8 | 3.5 | 23.8 |
| 3.5X25.8 | 3.5 | 25.8 |
| 3.5X27.8 | 3.5 | 27.8 |
| 3.5X29.8 | 3.5 | 29.8 |
| 3.5X34.8 | 3.5 | 34.8 |
| 4X15.8 | 4 | 15.8 |
| 4X17.8 | 4 | 17.8 |
| 4X19.8 | 4 | 19.8 |
| 4X21.8 | 4 | 21.8 |
| 4X23.8 | 4 | 23.8 |
| 4X25.8 | 4 | 25.8 |
| 4X27.8 | 4 | 27.8 |
| 4X29.8 | 4 | 29.8 |
| 4X34.8 | 4 | 34.8 |
| 4X39.8 | 4 | 39.8 |
| 5X19.8 | 5 | 19.8 |
| 5X21.8 | 5 | 21.8 |
| 5X23.8 | 5 | 23.8 |
| 5X25.8 | 5 | 25.8 |
| 5X27.8 | 5 | 27.8 |
| 5X29.8 | 5 | 29.8 |
| 5X34.8 | 5 | 34.8 |
| 5X39.8 | 5 | 39.8 |
| 5X49.8 | 5 | 49.8 |
| 销1.8X6 | 1.8 | 6 |
| 销2.5X11.8 | 2.5 | 11.8 |
| 销3X5.2 | 3 | 5.2 |
| 销3.5X9 | 3.5 | 9 |
| 销4X8.8 | 4 | 8.8 |
| 销4X11.2 | 4 | 11.2 |
| 销4X13.8 | 4 | 13.8 |
| 销5X5 | 5 | 5 |
| 销5X8 | 5 | 8 |
| 销5X12.8 | 5 | 12.8 |
| 销5X18 | 5 | 18 |
| 销5X38 | 5 | 38 |
| 销6X10 | 6 | 10 |
| 销6X277 | 6 | 27 |
| 销7X27 | 7 | 27 |
| 销7.02X20 | 7.02 | 20 |
| 销7.02X22 | 7.02 | 22 |
| 销8X13 | 8 | 13 |
| 销8X16 | 8 | 16 |
| 销8X30 | 8 | 30 |
| 销8.5X19.5 | 8.5 | 19.5 |
| 销9.55X20 | 9.55 | 20 |
| 销9.55X24 | 9.55 | 24 |
| 销10X39.5 | 10 | 39.5 |
| 销10X60 | 10 | 60 |
| 销10X116 | 10 | 116 |
| 销10.183X17 | 10.183 | 17 |
| 销12X14 | 12 | 14 |
| 销12.088X27 | 12.088 | 27 |
