经营范围
——
公司的经营范围主要有：冲压外圈滚针轴承、平面轴承、向心滚针和保持架组件、实体滚针轴承、汽车转向器用无间隙轴承、单向轴承、导轮及各类滚针和销轴。主要应用于电动工具、园林机械、汽车、门控系统、金融工具、办公用品等行业，同时，可根据客户需求开发非标准滚针轴承。
联系方式
——
©2018 苏州工业园区迪微精密轴承有限公司 版权所有
网站建设：中企动力 昆山 苏ICP备15054952号-1
名称：中企动力科技股份有限公司
地址：北京市经济技术开发区地盛西路1号数码庄园
电话：400-660-5555
邮箱：service4006@300.cn
商务合作邮箱：online@300.cn
品牌公关报道：brand@300.cn
服务案例
——
产品描述
|

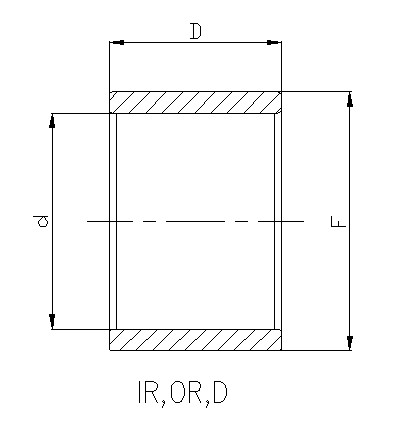

实体圈 Roller |
|||||
|
轴径 Shaft Diameter (mm) |
轴承代号 Bearing Designation |
外形尺寸 Boundary Dimension (mm) |
|||
| d | F | D | |||
| 7 | IR7X10X12 | 7 | 10 | 12 | |
| D-7X12.6X13 | 7 | 12.6 | 13 | ||
| D-7X17.5X11 | 7 | 17.5 | 11 | ||
| D-7X18X12 | 7 | 18 | 12 | ||
| D-7X18X13 | 7 | 18 | 13 | ||
| D-7X19X12 | 7 | 19 | 12 | ||
| D-7X22X11 | 7 | 22 | 11 | ||
| 8 | IR8X12X12.5 | 8 | 12 | 12.5 | |
| D-8X15X6.7 | 8 | 15 | 6.7 | ||
| 8.52 | D-8.52X14X16 | 8.52 | 14 | 16 | |
| D-8.52X14.8X9 | 8.52 | 14.8 | 9 | ||
| 9.57 | D-9.57X20X12 | 9.57 | 20 | 12 | |
| 10 | IR10X13X12.5 | 10 | 13 | 12.5 | |
| 12 | IR10X15X12.5 | 12 | 15 | 12.5 | |
| IR12X16X12 | 12 | 16 | 12 | ||
| 12.5 | D-12.5X18X9 | 12.5 | 18 | 9 | |
| D-12.5X18X15.95 | 12.5 | 18 | 15.95 | ||
| 13.5 | D-13.5X22X10 | 13.5 | 22 | 10 | |
| 15 | D-15X22X3.5 | 15 | 22 | 3.5 | |
| D-15X22X4.5 | 15 | 22 | 4.5 | ||
| IR15X18X16.5 | 15 | 18 | 16.5 | ||
| IR15X20X23 | 15 | 20 | 23 | ||
| 16.088 | D-16.088X22X18 | 16.088 | 22 | 18 | |
| 17 | IR17X20X16 | 17 | 20 | 16 | |
| IR17X20X20 | 17 | 20 | 20 | ||
| IR17X21X20 | 17 | 21 | 20 | ||
| IR17X22X13 | 17 | 22 | 13 | ||
| 20 | IR20X24X20 | 20 | 24 | 20 | |
| LR20X25X12.5 | 20 | 25 | 12.5 | ||
| LR20X25X20.5 | 20 | 25 | 20.5 | ||
| D-20X26.94X5.25 | 20 | 26.94 | 5.25 | ||
| 22 | IR22X28X20.5 | 22 | 28 | 20.5 | |
| 25 | IR25X30X12.5 | 25 | 30 | 12.5 | |
| IR25X30X20 | 25 | 30 | 20 | ||
| IR25X30X32 | 25 | 30 | 32 | ||
| 30 | IR30X35X16 | 30 | 35 | 16 | |
| IR30X35X20.5 | 30 | 35 | 20.5 | ||
| IR30X35X30 | 30 | 35 | 30 | ||
| 35 | IR35X40X17 | 35 | 40 | 17 | |
| LR35X40X20 | 35 | 40 | 20 | ||
| IR35X40X30 | 35 | 40 | 30 | ||
| 40 | IR40X45X10 | 40 | 45 | 10 | |
| IR40X45X20 | 40 | 45 | 20 | ||
| IR40X45X30 | 40 | 45 | 30 | ||
| 45 | IR45X50X20 | 45 | 50 | 20 | |
| IR45X50X35 | 45 | 50 | 35 | ||
| IR45X52X22 | 45 | 52 | 22 | ||
| 50 | IR50X55X20 | 50 | 55 | 20 | |
| IR50X55X35 | 50 | 55 | 35 | ||
| IR50X58X22 | 50 | 58 | 22 | ||
| IR50X58X40 | 50 | 58 | 40 | ||
| IR50X60X25 | 50 | 60 | 25 | ||
| IR50X60X28 | 50 | 60 | 28 | ||
| 55 | IR55X60X35 | 55 | 60 | 35 | |
| 60 | IR60X68X45 | 60 | 68 | 45 | |
| IR60X70X25 | 60 | 70 | 25 | ||
| IR60X70X60 | 60 | 70 | 60 | ||
| 65 | IR65X72X45 | 65 | 72 | 45 | |
| IR65X75X28 | 65 | 75 | 28 | ||
| 70 | IR70X80X25 | 70 | 80 | 25 | |
| IR70X80X54 | 70 | 80 | 54 | ||
| 80 | IR80X90X35 | 80 | 90 | 35 | |
