冲压外圈滚针离合器轴承
冲压外圈滚针离合器轴承Drawn Cup Roller Clutches bearing轴径Shaft Diameter(mm)轴承代号Bearing Designation外形尺寸Boundary Dimension(mm)传动力矩N.m极限转速Limiting Speed(rpm)FwDC脂润滑 Grease油润滑 Oil6HF0612610121.7620000130008HF081281
所属分类：
冲压外圈滚针离合器轴承
产品描述
|

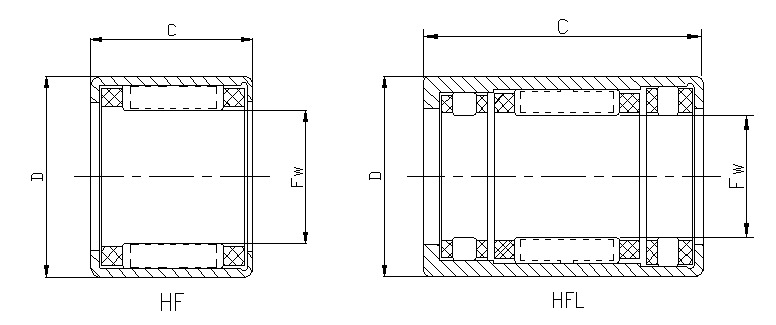

冲压外圈滚针离合器轴承 Drawn Cup Roller Clutches bearing |
|||||||
|
轴径 Shaft Diameter (mm) |
轴承代号 Bearing Designation |
外形尺寸 Boundary Dimension (mm) |
传动力矩 N.m |
极限转速 Limiting Speed (rpm) |
|||
| Fw | D | C | 脂润滑 Grease | 油润滑 Oil | |||
| 6 | HF0612 | 6 | 10 | 12 | 1.76 | 20000 | 13000 |
| 8 | HF0812 | 8 | 12 | 12 | 3.15 | 16000 | 11000 |
| HFL0822 | 8 | 12 | 22 | 3.15 | 16000 | 11000 | |
| 10 | HF1012 | 10 | 14 | 12 | 5.3 | 14000 | 11000 |
| HFL1022 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | |
| 12 | HF1216 | 12 | 18 | 16 | 12.2 | 10000 | 7000 |
| HFL1226 | 12 | 18 | 26 | 12.2 | 10000 | 7000 | |
| 14 | HF1416 | 14 | 20 | 16 | 17.3 | 8500 | 7000 |
| 16 | HF1616 | 16 | 22 | 16 | 20.5 | 8500 | 7000 |
| HFL12224 | 16 | 22 | 24 | 20.5 | 8500 | 7000 | |
| 18 | HF1816 | 18 | 24 | 16 | 24.1 | 7000 | 7000 |
| 20 | HF2012 | 20 | 26 | 12 | 17 | 6500 | 6500 |
| HF2016 | 20 | 26 | 16 | 28.5 | 6500 | 6500 | |
| 25 | HF2520 | 25 | 32 | 20 | 66 | 5000 | 5000 |
| 30 | HF3016 | 30 | 37 | 16 | 70 | 4000 | 4000 |
| HF3020 | 30 | 37 | 20 | 90 | 4000 | 4000 | |
| 35 | HF3520 | 35 | 42 | 20 | 121 | 3700 | 3700 |
